Hide and auto-show the navigation bar, for Android 4.0 or higher

In last exercise to display a big picture, I want to hide the the navigation bar (Home, Back, ...) to leave for space for the big picture.

In Android 4.0, the APIs updated with new flags of SYSTEM_UI_FLAG_HIDE_NAVIGATION, that requests the navigation bar hide completely. Be aware that this works only for the navigation bar used by some handsets (it does not hide the system bar on tablets). The navigation bar returns to view as soon as the system receives user input.


You can also use SYSTEM_UI_FLAG_LOW_PROFILE flag, to enables �low profile" mode for the system bar or navigation bar. Navigation buttons dim and other elements in the system bar also hide. Enabling this is useful for creating more immersive games without distraction for the system navigation buttons, and SYSTEM_UI_FLAG_VISIBLE flag to request the system bar or navigation bar be visible.


You can set each of these flags for the system bar and navigation bar by calling setSystemUiVisibility() on any view in your activity. The window manager combines (OR-together) all flags from all views in your window and apply them to the system UI as long as your window has input focus. When your window loses input focus (the user navigates away from your app, or a dialog appears), your flags cease to have effect. Similarly, if you remove those views from the view hierarchy their flags no longer apply.


Example:

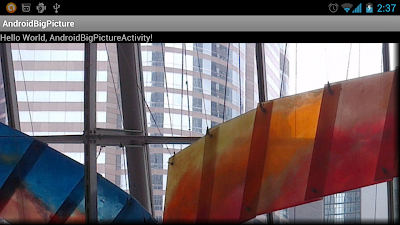

The navigation bar hide when the app start

The navigation bar return after user touched on the screen

package com.exercise.AndroidBigPicture;

import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.widget.ImageView;

public class AndroidBigPictureActivity extends Activity {
    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        ImageView myImageView = (ImageView)findViewById(R.id.myimageview);
        myImageView.setSystemUiVisibility(View.SYSTEM_UI_FLAG_HIDE_NAVIGATION);
    }
}

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

    <TextView
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="@string/hello" />

    <HorizontalScrollView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content">
        <ScrollView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content">
            <ImageView
                android:id="@+id/myimageview"
                android:src="@drawable/bigpicture"
                android:layout_height="wrap_content"
                android:layout_width="wrap_content"
                android:scaleType="center"/>
        </ScrollView>
 </HorizontalScrollView>
</LinearLayout>
